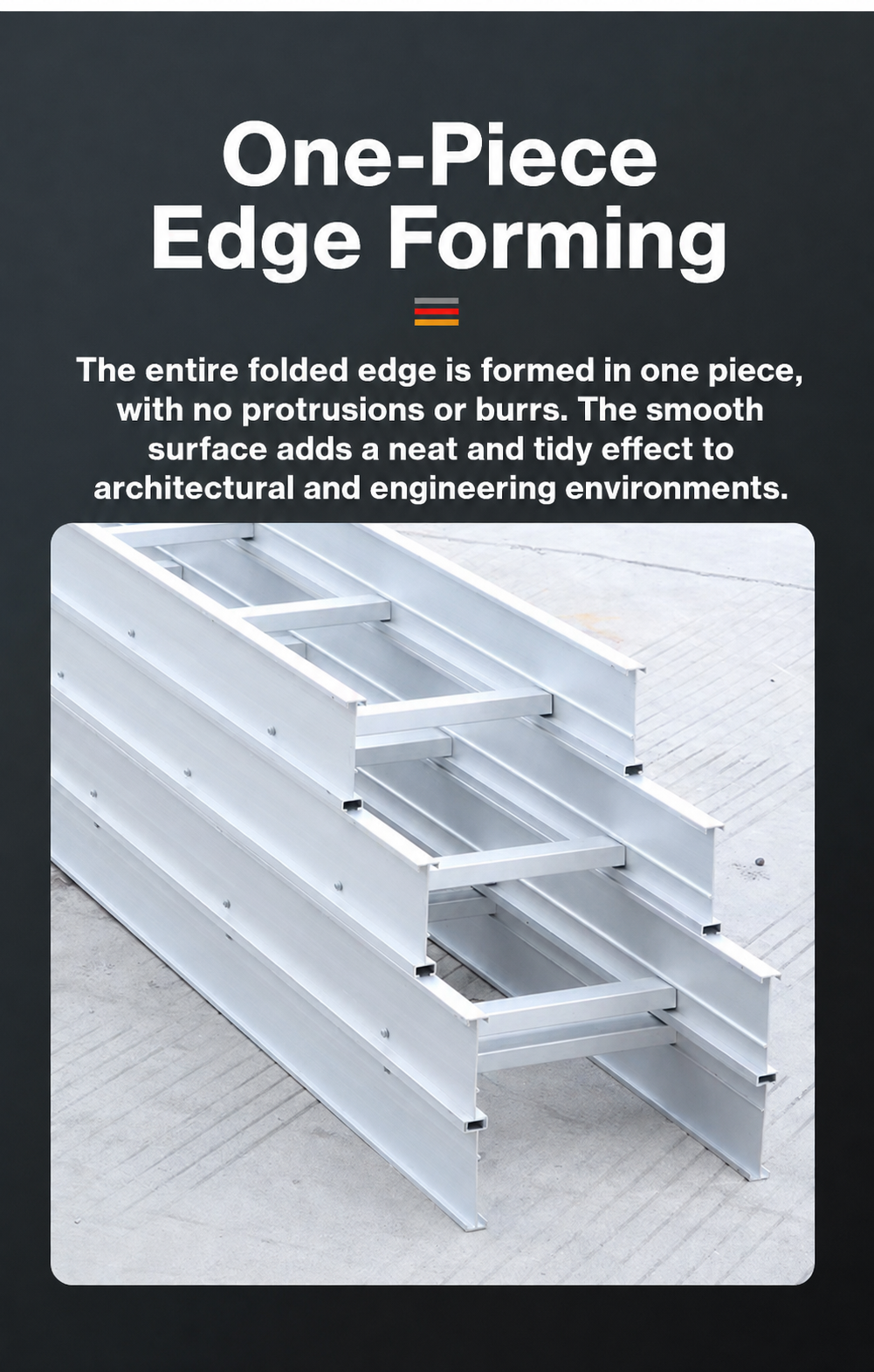

XQJ-T Cable Ladder Parameters
Technical parameters, construction layout drawings and reference specifications for XQJ-T cable ladder and related fittings.

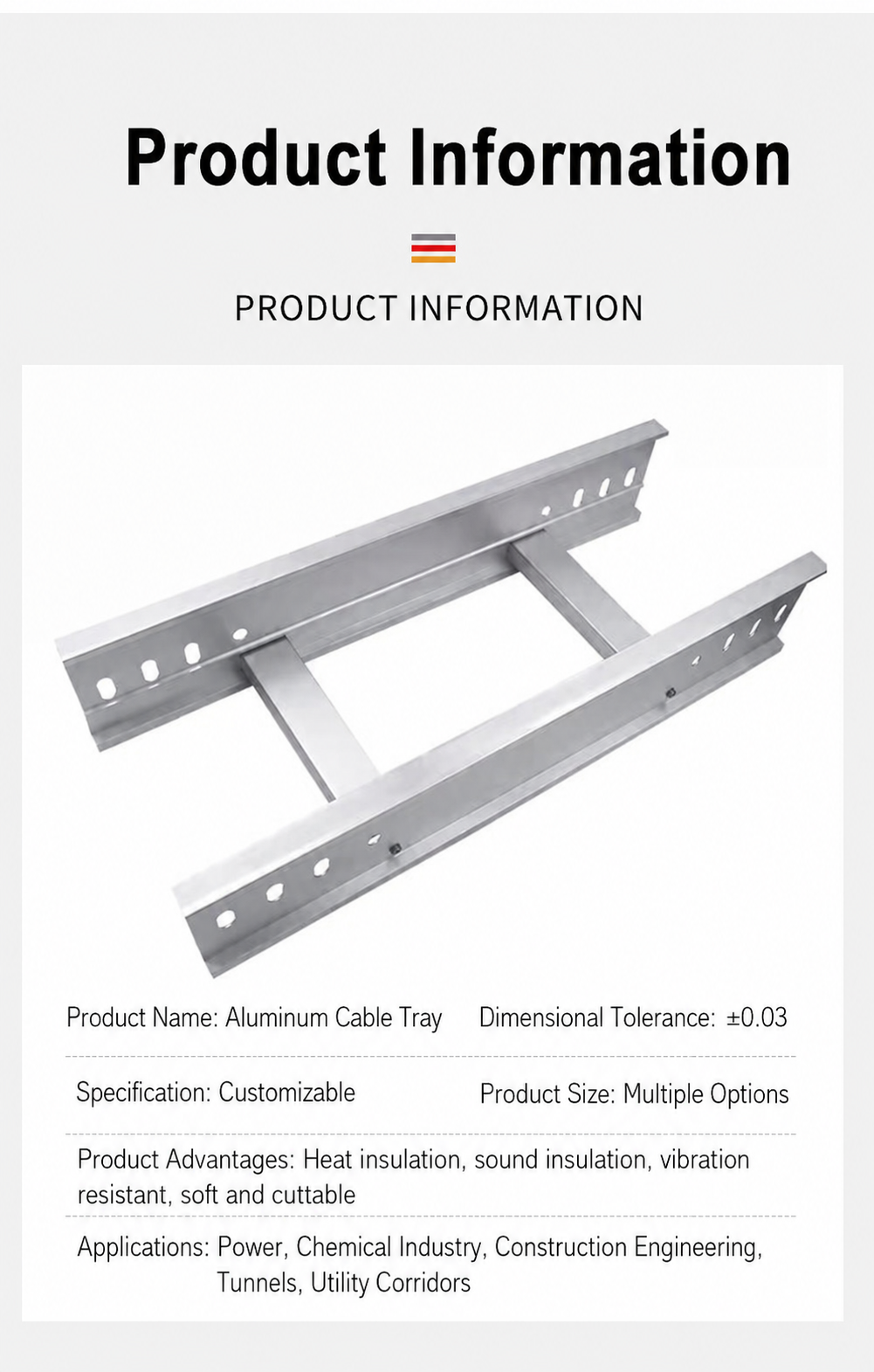

Basic Specifications
The following information is for reference only. Final specifications can be customized according to project requirements.

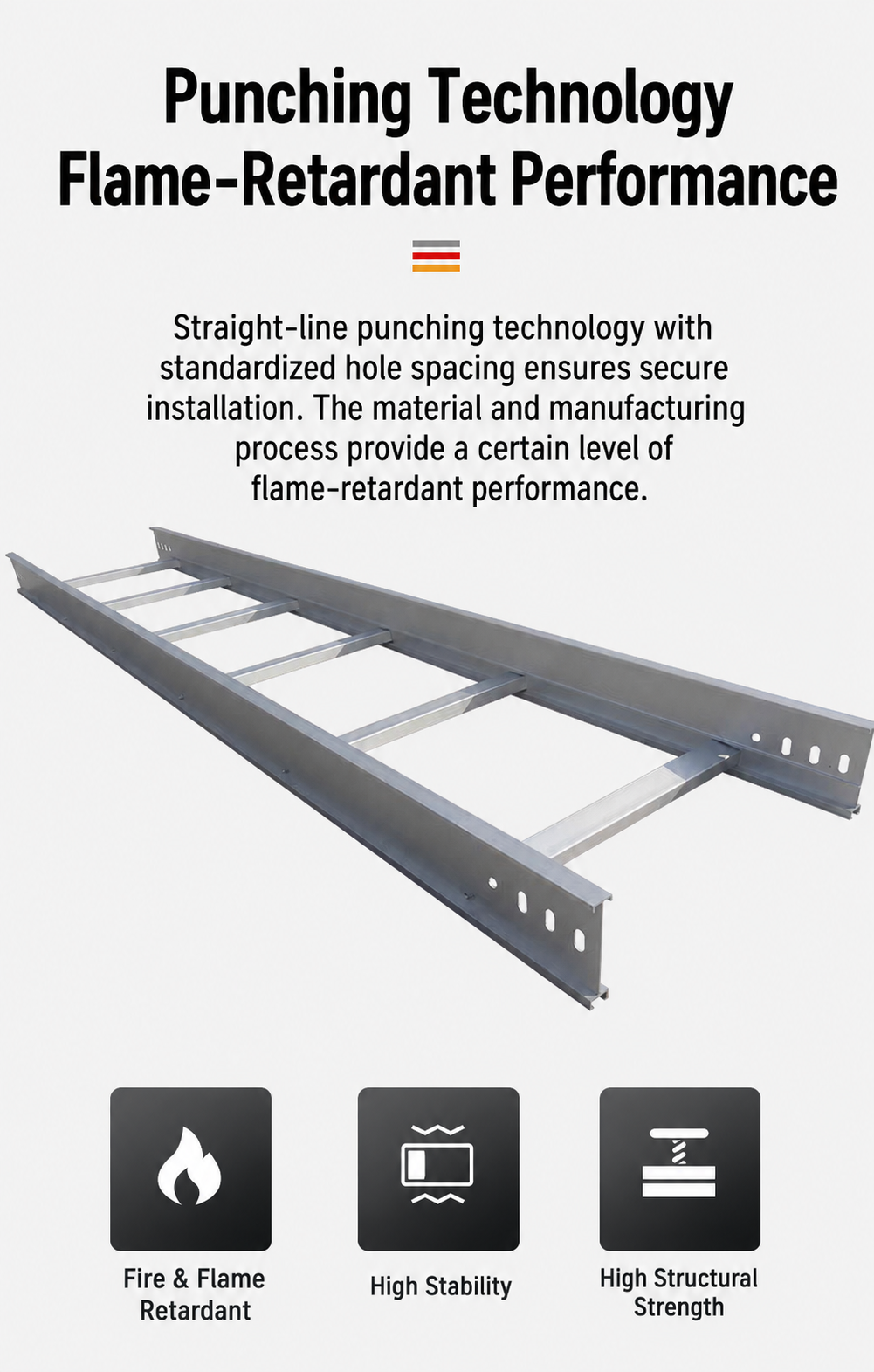

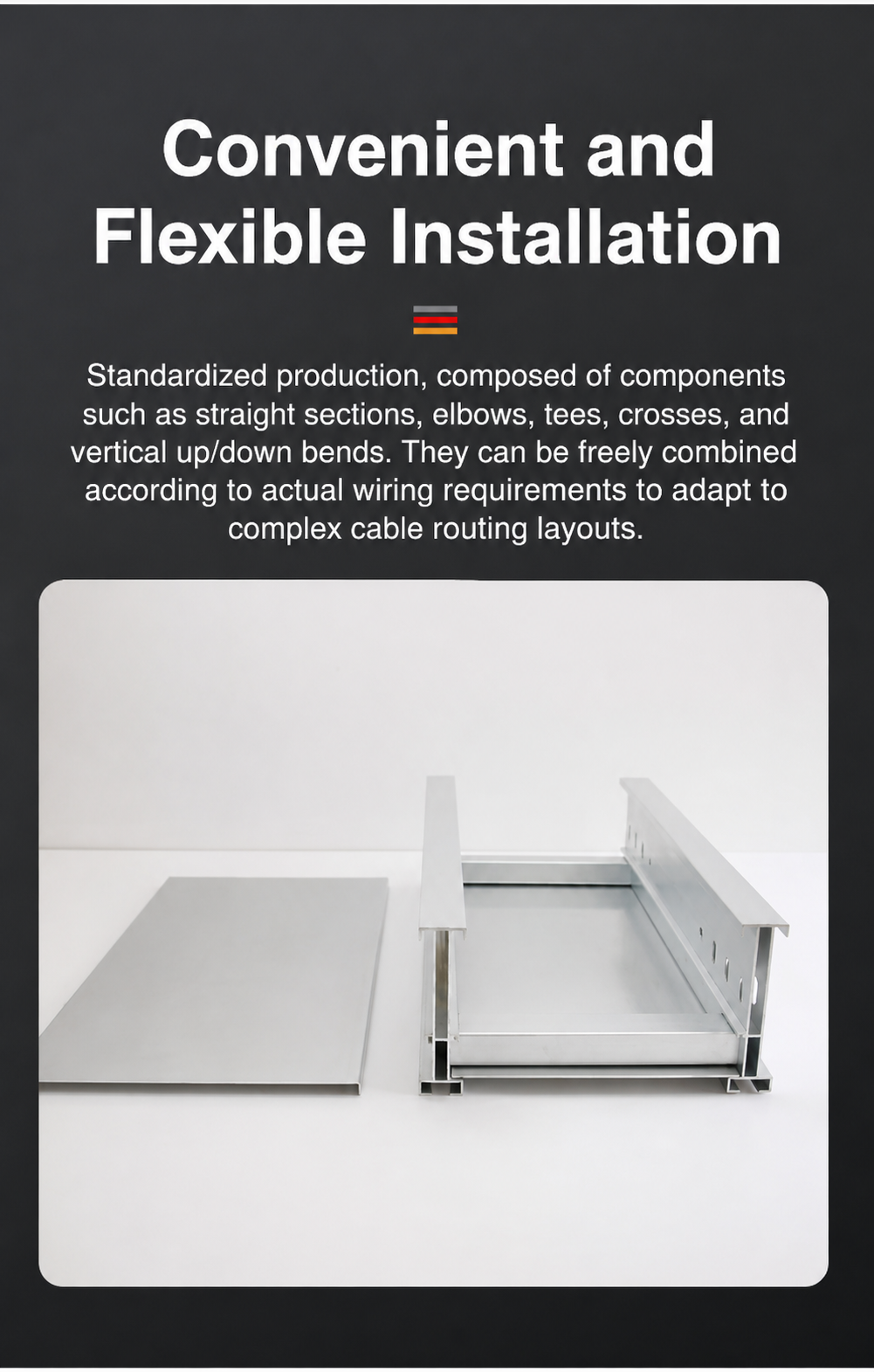

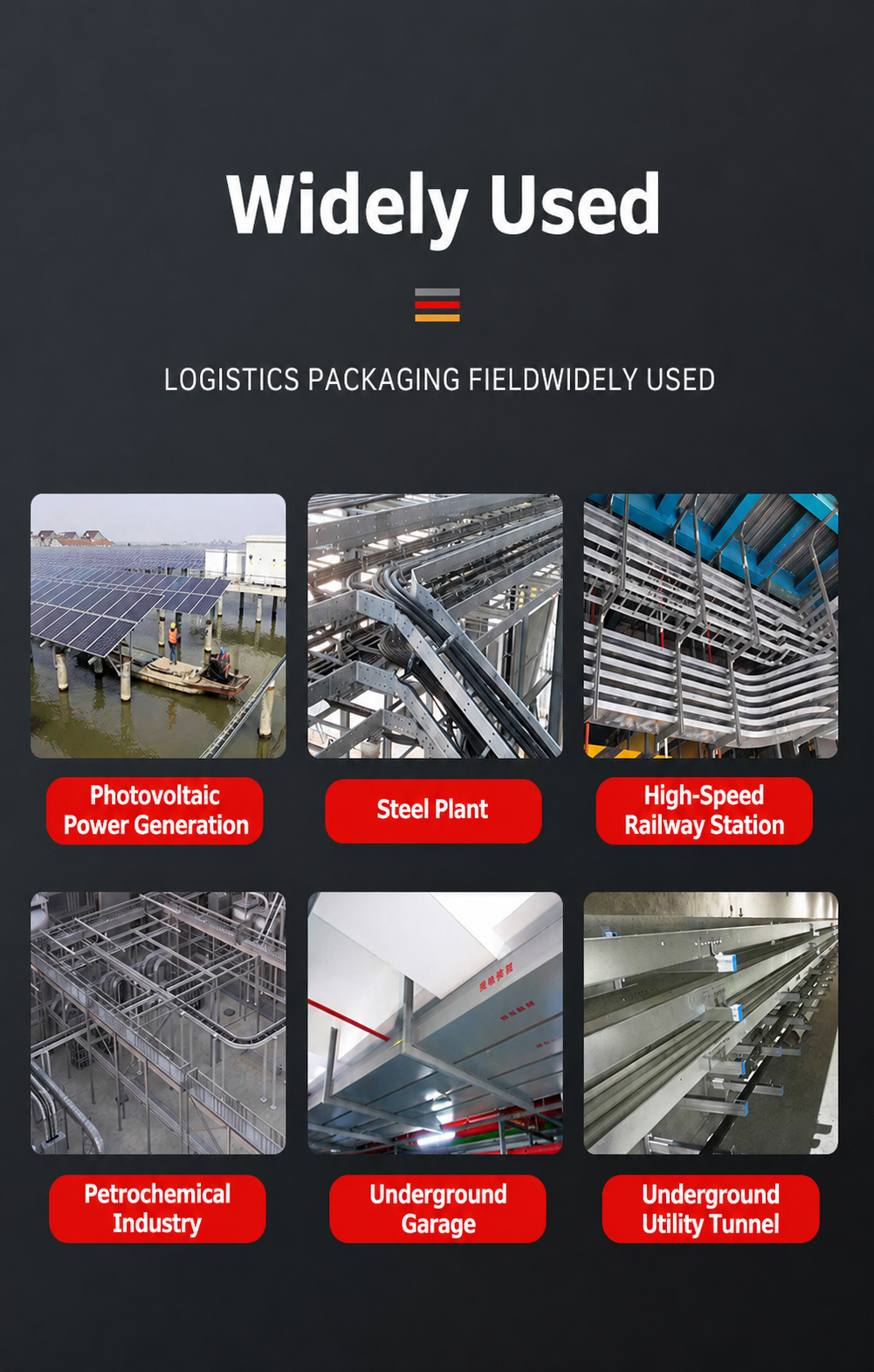

| Product Name | XQJ-T Cable Ladder |
|---|---|
| Product Type | Cable Ladder / Ladder Cable Tray System |
| Materials | Q235, stainless steel 201 / 304 / 316, aluminum alloy |
| Surface Treatments | Hot-dip galvanizing, fireproofing, hot-dip zinc immersion, electrostatic spraying / powder coating, aluminum-magnesium-zinc plating |
| Customizable Items | Width, height, thickness, length, material and surface treatment can be customized |
| Application | Power distribution, heavy cable routing, industrial facilities, equipment rooms, infrastructure projects and large-span cable support systems |
Plate Thickness & Load Reference
Reference values should be confirmed based on actual span, material, thickness and installation conditions.
Allowable Minimum Plate Thickness
| Width of Cable Tray W | Steel Cable Tray | Aluminum Alloy Cable Tray |
|---|---|---|
| W < 150 | 1.0 mm | 1.2 mm |
| 150 < W ≤ 300 | 1.2 mm | 1.5 mm |
| 300 < W ≤ 500 | 1.5 mm | 2.0 mm |
| 500 < W ≤ 800 | 2.0 mm | 2.2 mm |
| W > 800 | 2.2 mm | 2.5 mm |
Typical Safe Working Load Reference
| Material | Span | Side Height 100mm | Side Height 150mm | Side Height 200mm |
|---|---|---|---|---|
| Steel | 2000 mm | 1000 N/m | 1850 N/m | 3100 N/m |
| Aluminum Alloy | 2000 mm | 800 N/m | 1450 N/m | 2450 N/m |
Note: The final working load should be confirmed according to actual support span, material, thickness and installation conditions.

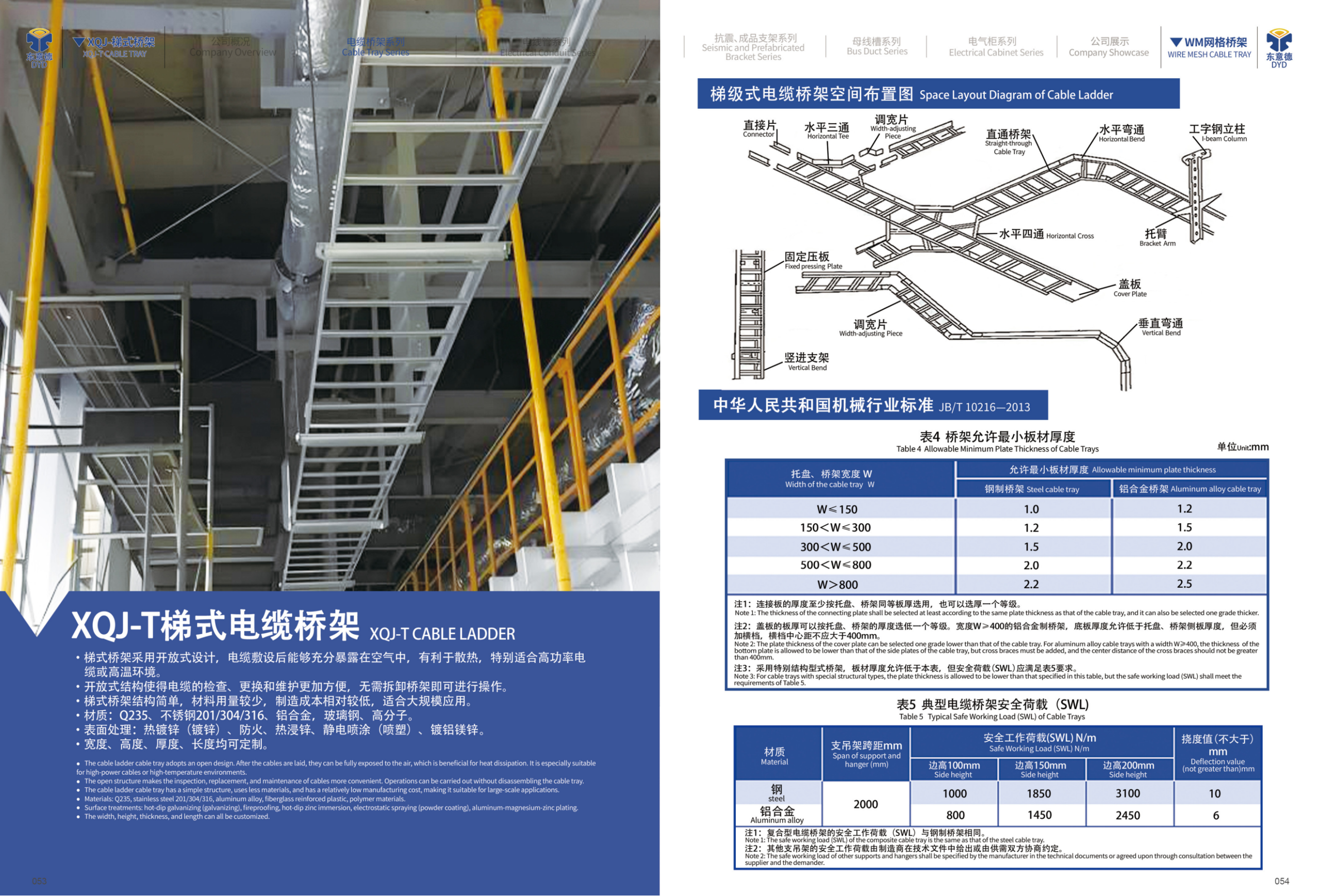

Space Layout Diagram
Click the drawing to enlarge and view details.
Construction Drawings & Parameter Sheets
Click each image to enlarge the full parameter drawing.
Overview, Layout and Standard Parameters

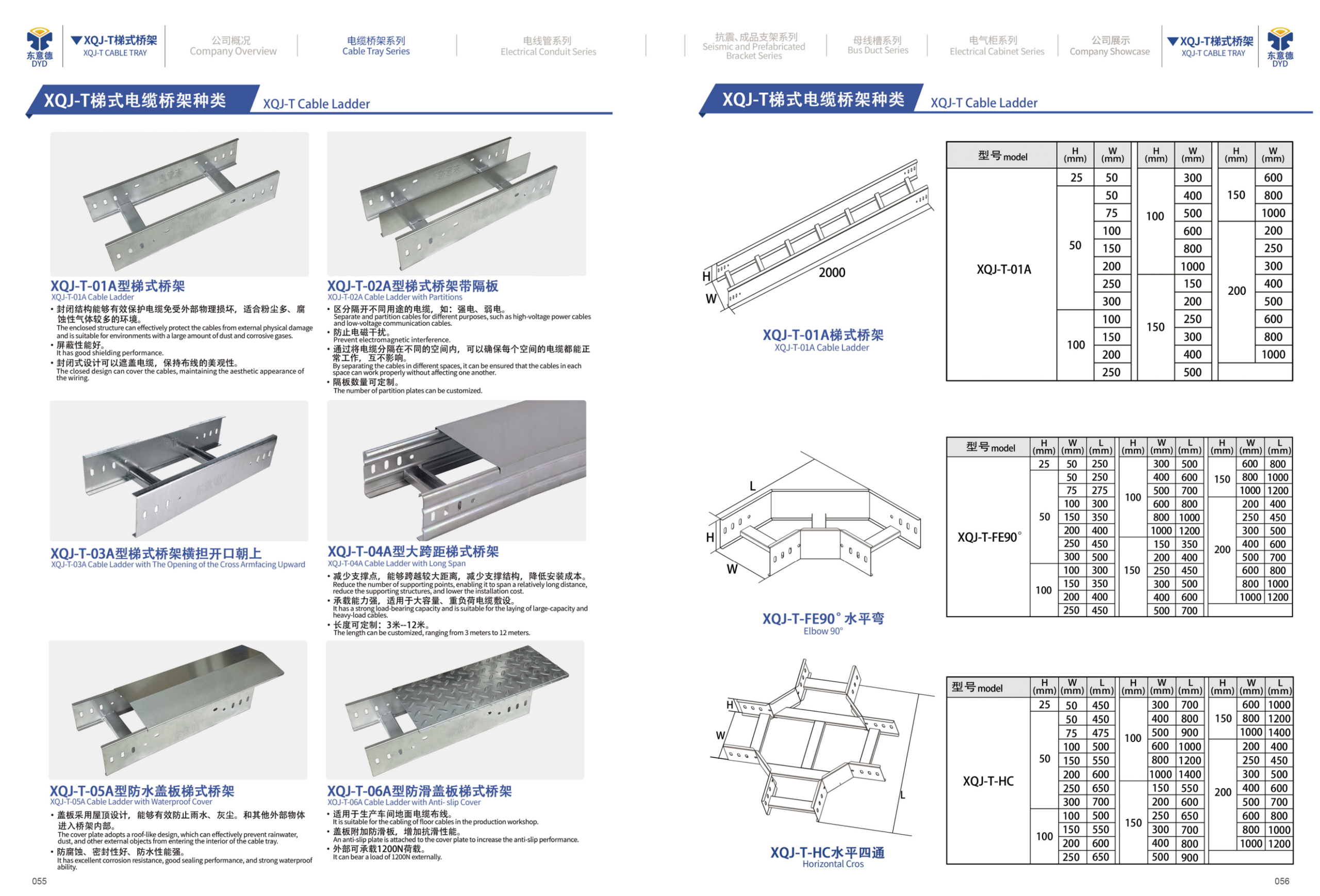

Cable Ladder and Elbow Series

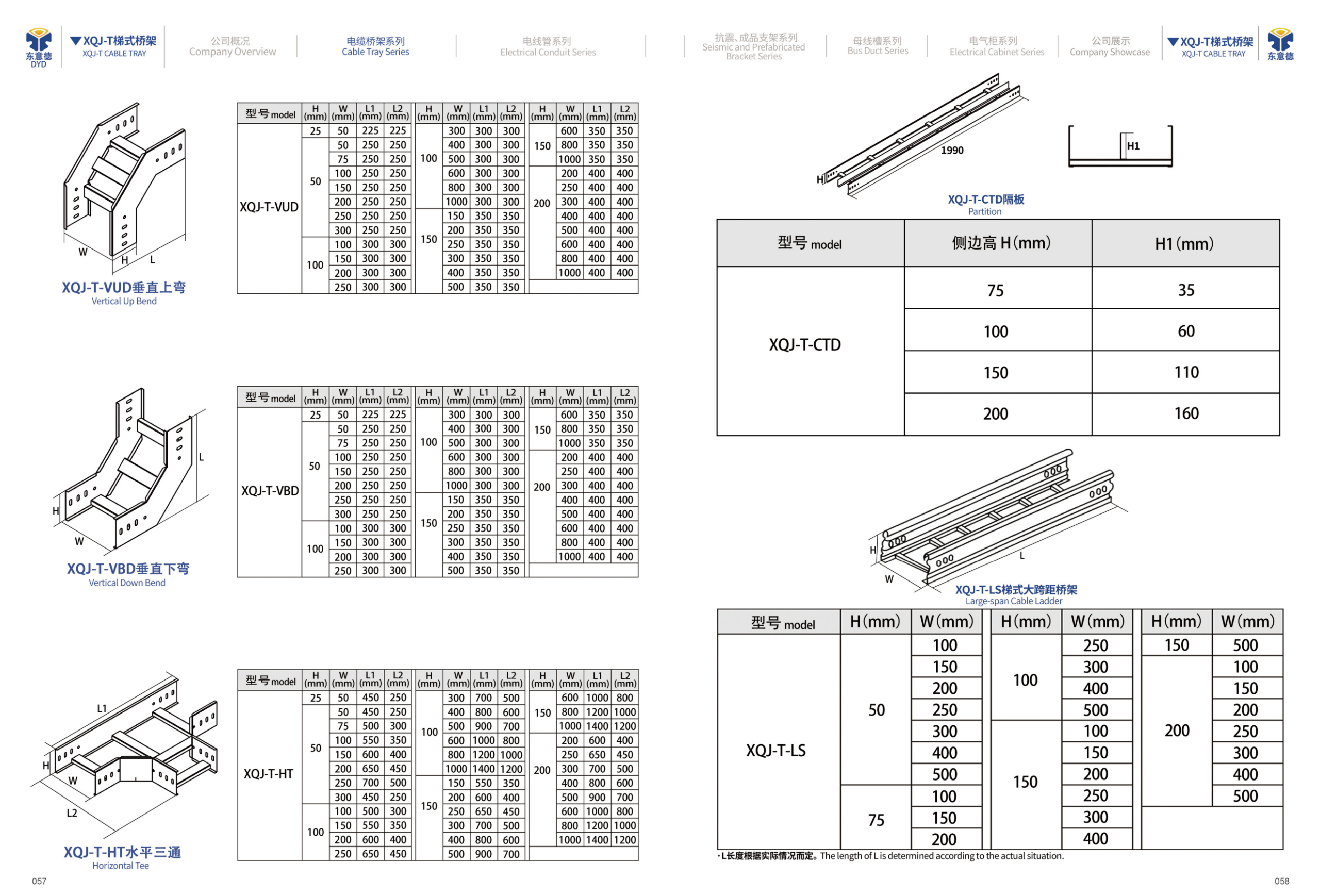

Cross, Vertical Bends and Horizontal Tee

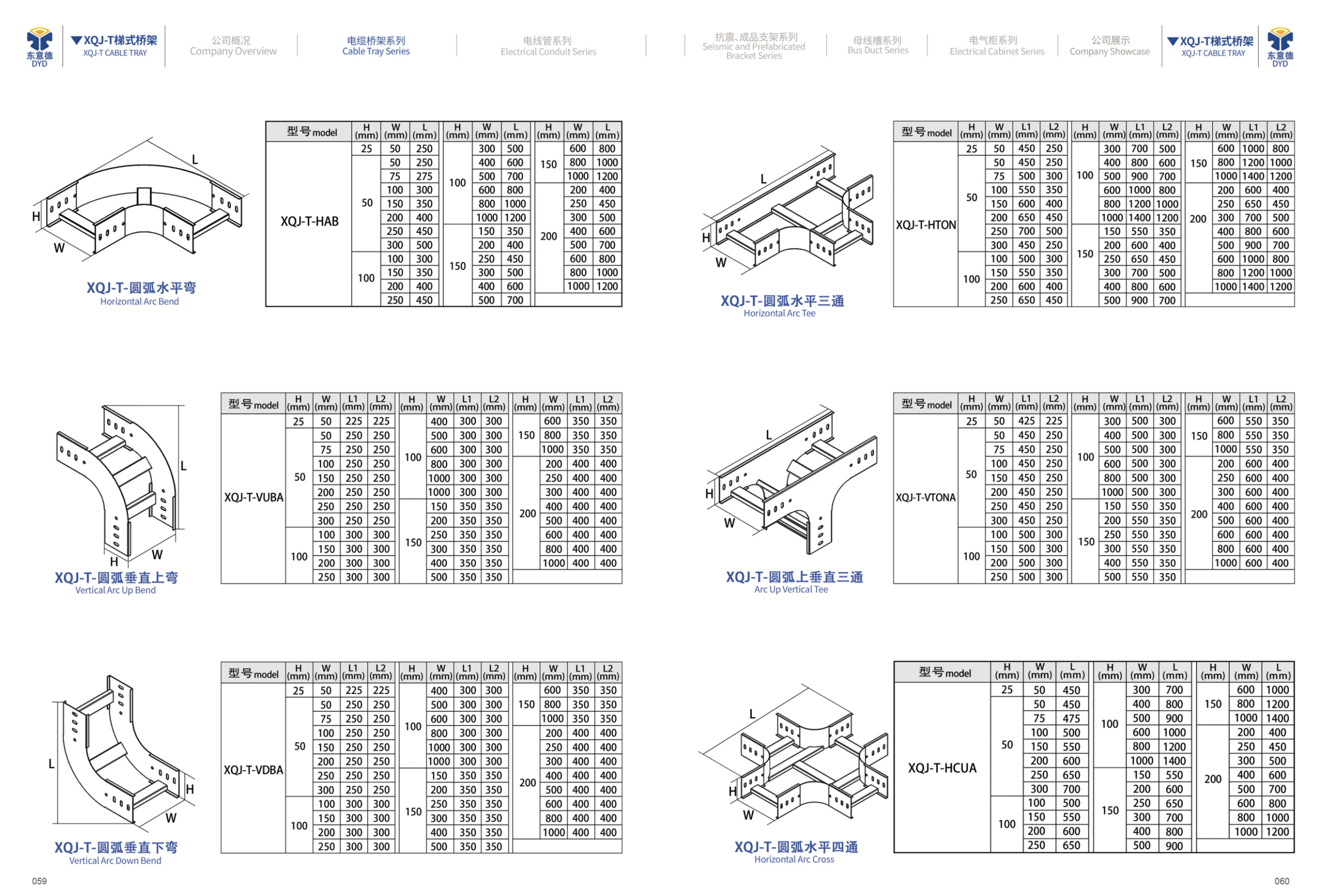

Partition and Large-Span Cable Ladder

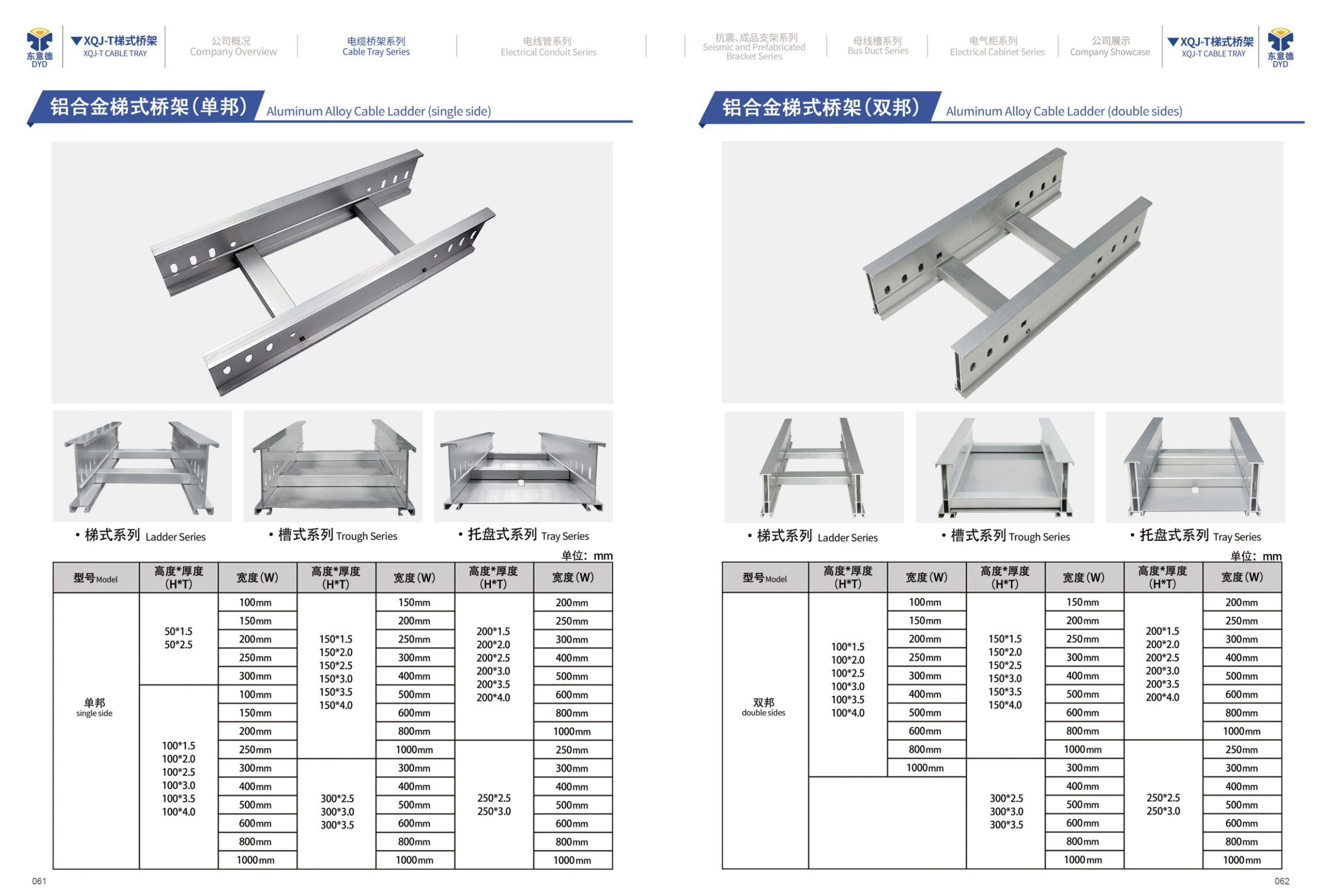

Horizontal Arc Bend and Vertical Arc Bends

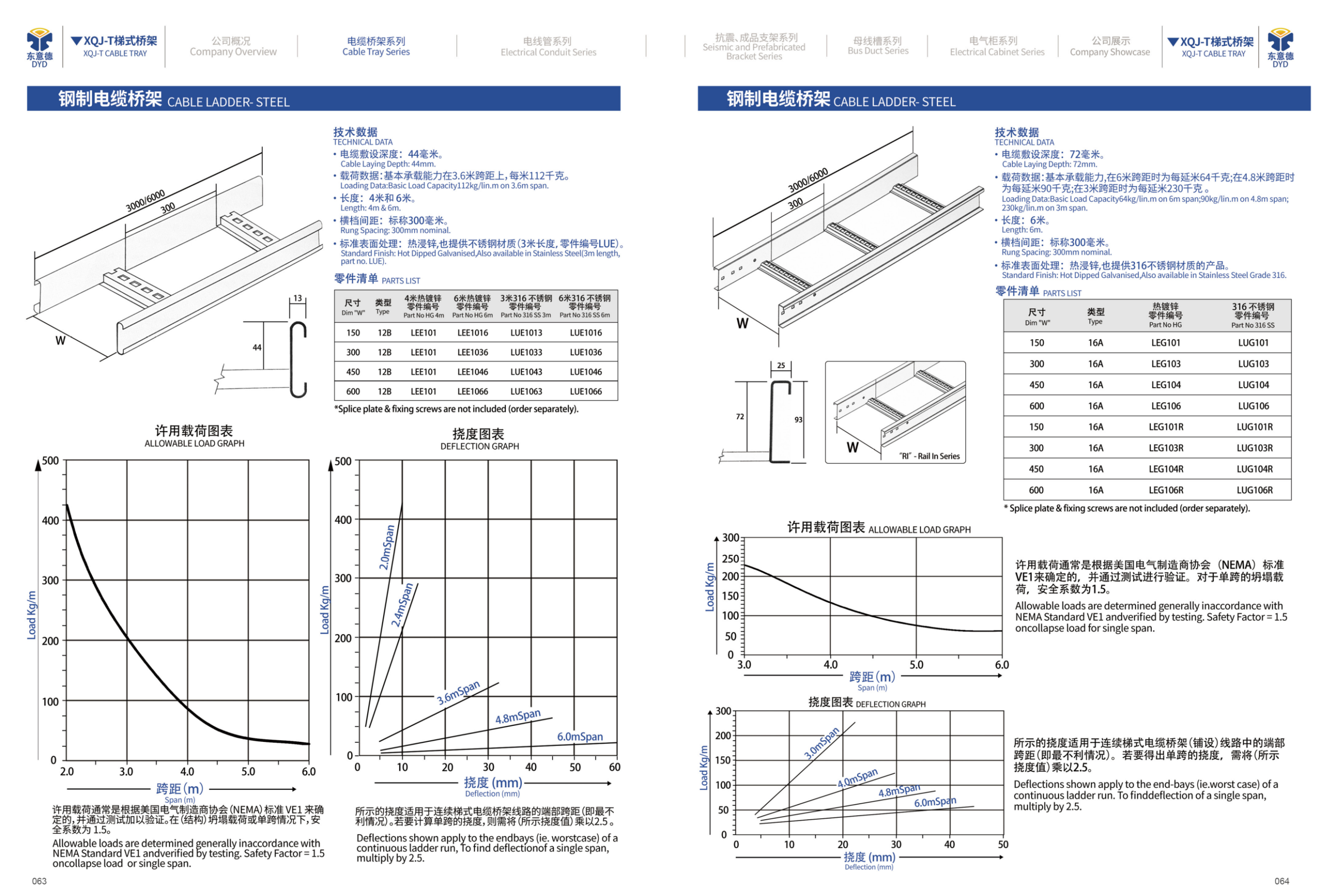

Horizontal Arc Tee and Arc Vertical Tee

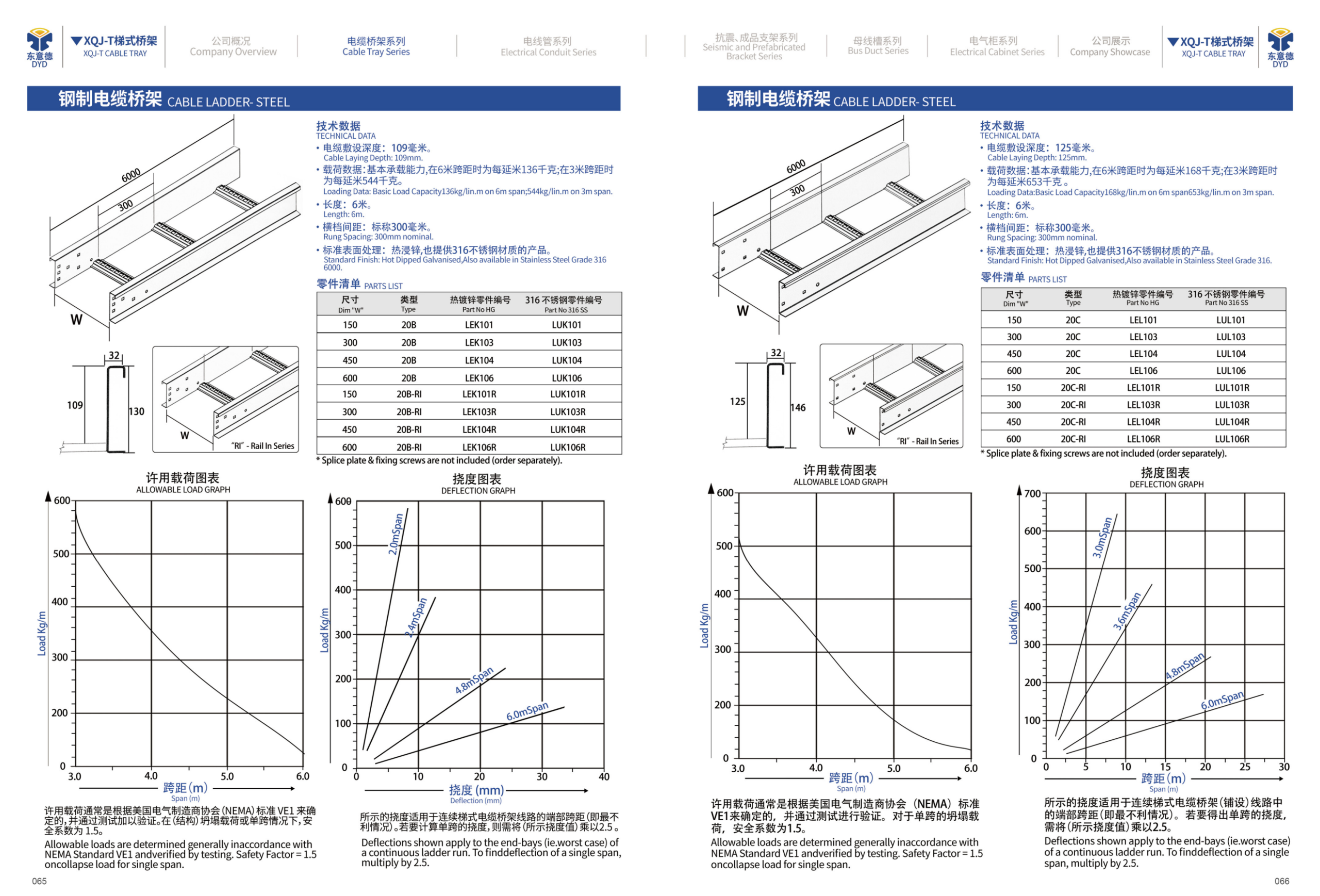

Horizontal Arc Cross and Additional Parameter Drawings
Need XQJ-T Cable Ladder for Your Project?
Share your required width, height, thickness, material, surface treatment and project drawings. We can support product selection and quotation.
