XQJ-P Perforated Cable Trays Parameters
Technical parameters, construction layout drawings and reference specifications for XQJ-P perforated cable trays and related fittings.

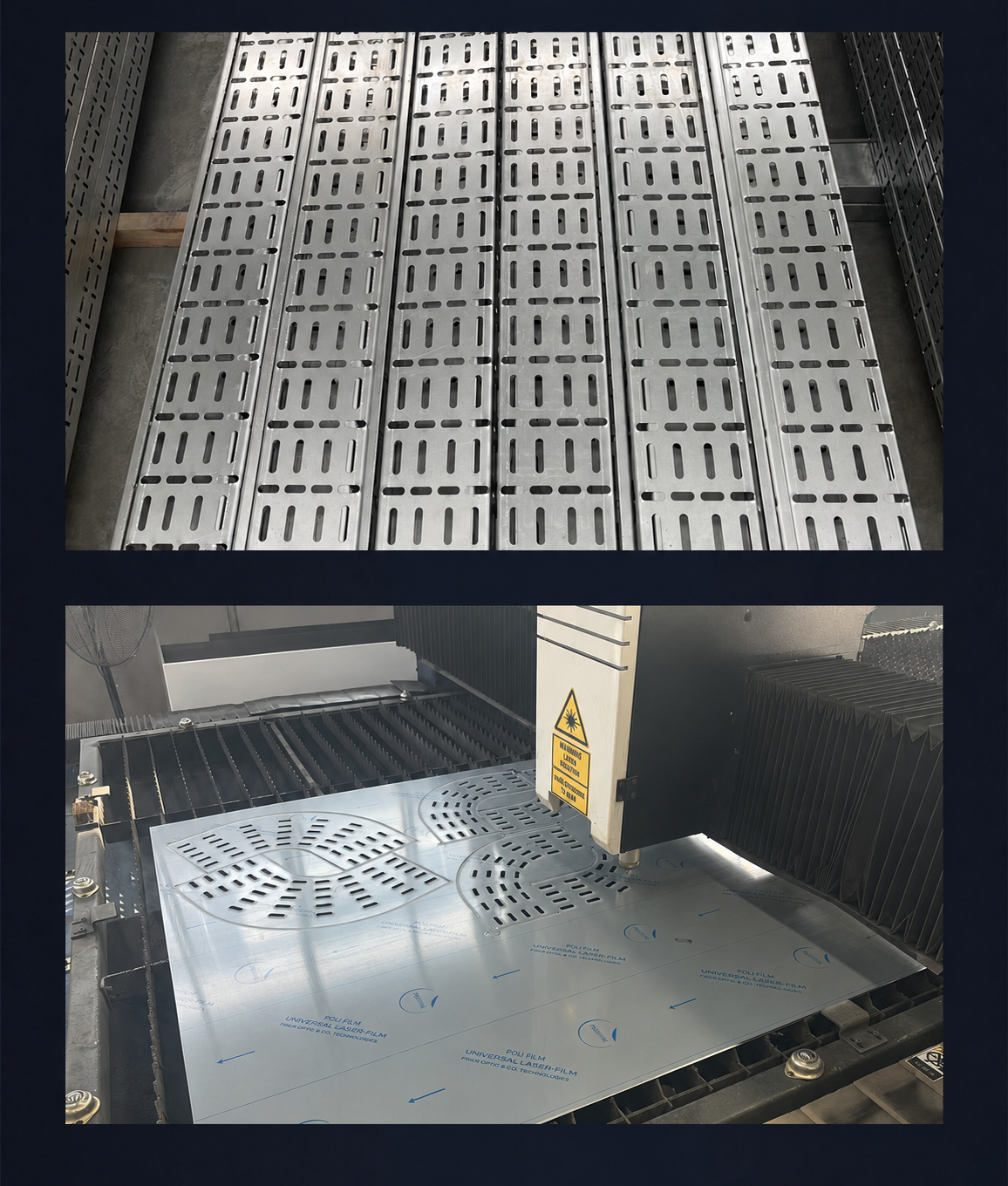

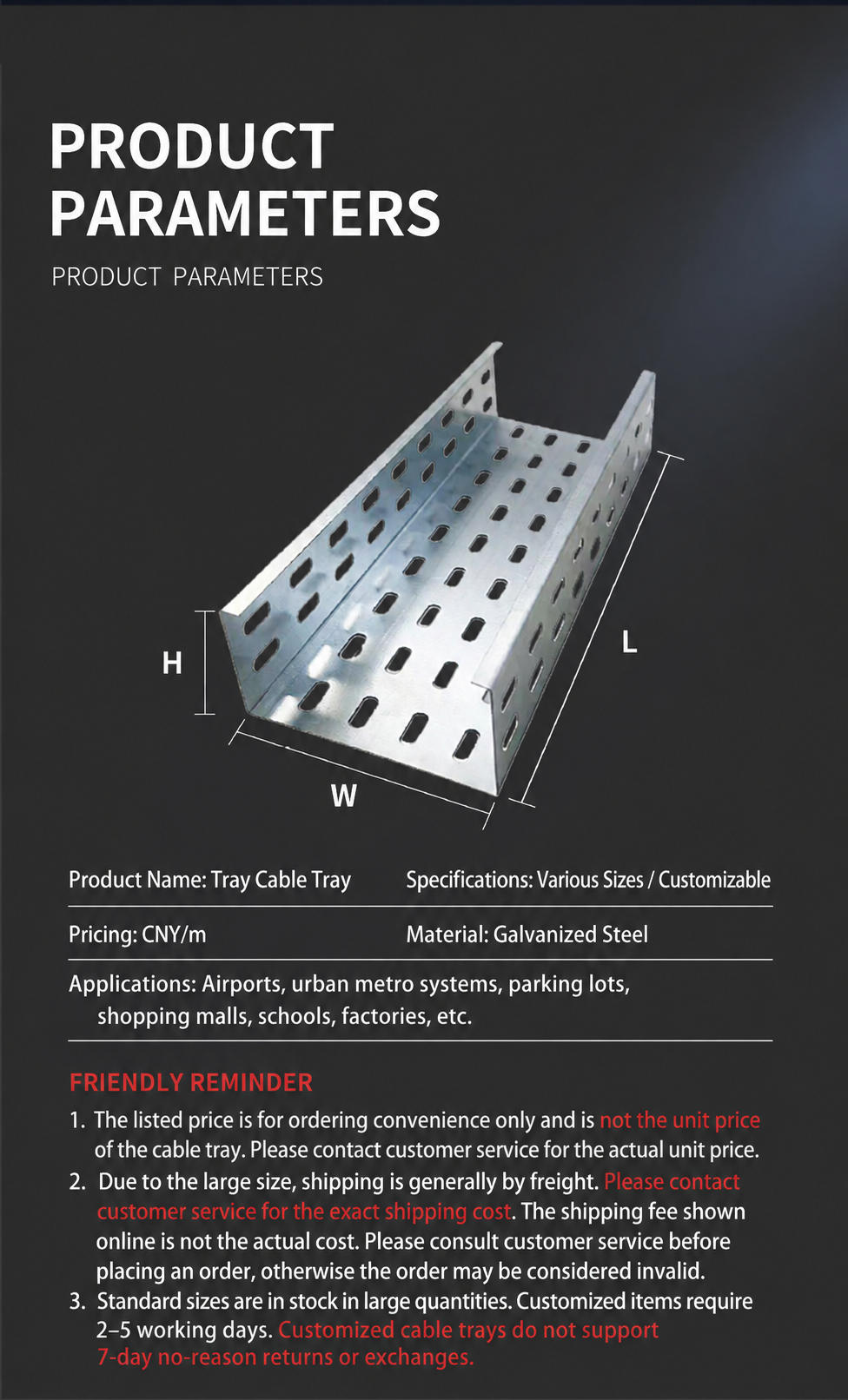

Basic Specifications
The following information is for reference only. Final specifications can be customized according to project requirements.
| Product Name | XQJ-P Perforated Cable Trays |
|---|---|
| Product Type | Perforated Cable Tray / Ventilated Cable Tray System |
| Materials | Q235, stainless steel 201 / 304 / 316, aluminum alloy |
| Surface Treatments | Hot-dip galvanizing, fireproofing, hot-dip zinc immersion, electrostatic spraying / powder coating, aluminum-magnesium-zinc plating |
| Customizable Items | Width, height, thickness, length, material and surface treatment can be customized |
| Application | Power distribution, communication systems, automation, industrial facilities, commercial buildings, equipment rooms and infrastructure projects |
Plate Thickness & Load Reference
Reference values should be confirmed based on actual span, material, thickness and installation conditions.

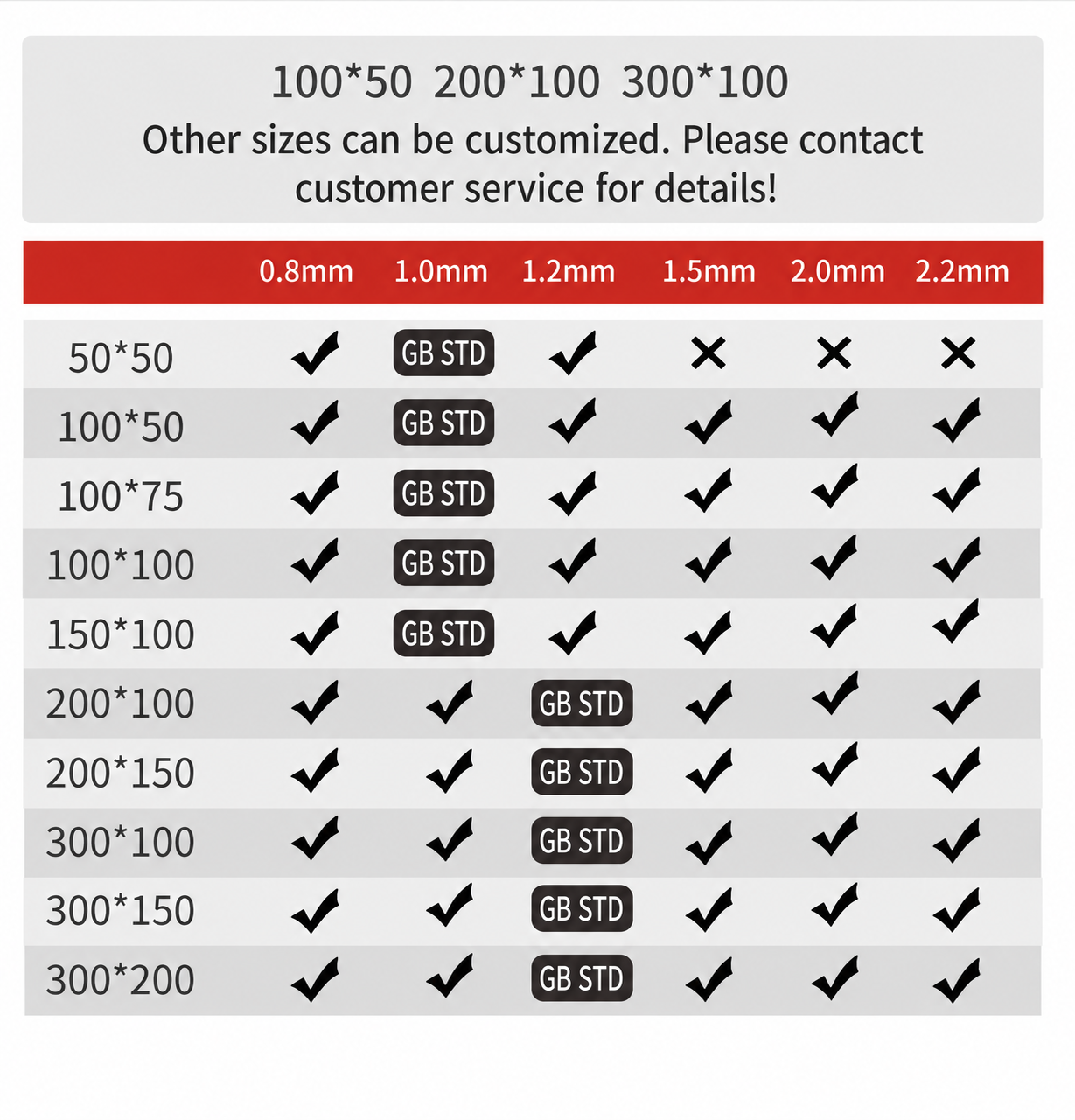

Allowable Minimum Plate Thickness
| Width of Cable Tray W | Steel Cable Tray | Aluminum Alloy Cable Tray |
|---|---|---|
| W < 150 | 1.0 mm | 1.2 mm |
| 150 < W ≤ 300 | 1.2 mm | 1.5 mm |
| 300 < W ≤ 500 | 1.5 mm | 2.0 mm |
| 500 < W ≤ 800 | 2.0 mm | 2.2 mm |
| W > 800 | 2.2 mm | 2.5 mm |
Typical Safe Working Load Reference
| Material | Span | Side Height 100mm | Side Height 150mm | Side Height 200mm |
|---|---|---|---|---|
| Steel | 2000 mm | 1000 N/m | 1850 N/m | 3100 N/m |
| Aluminum Alloy | 2000 mm | 800 N/m | 1450 N/m | 2450 N/m |
Note: The final working load should be confirmed according to actual support span, material, thickness and installation conditions.

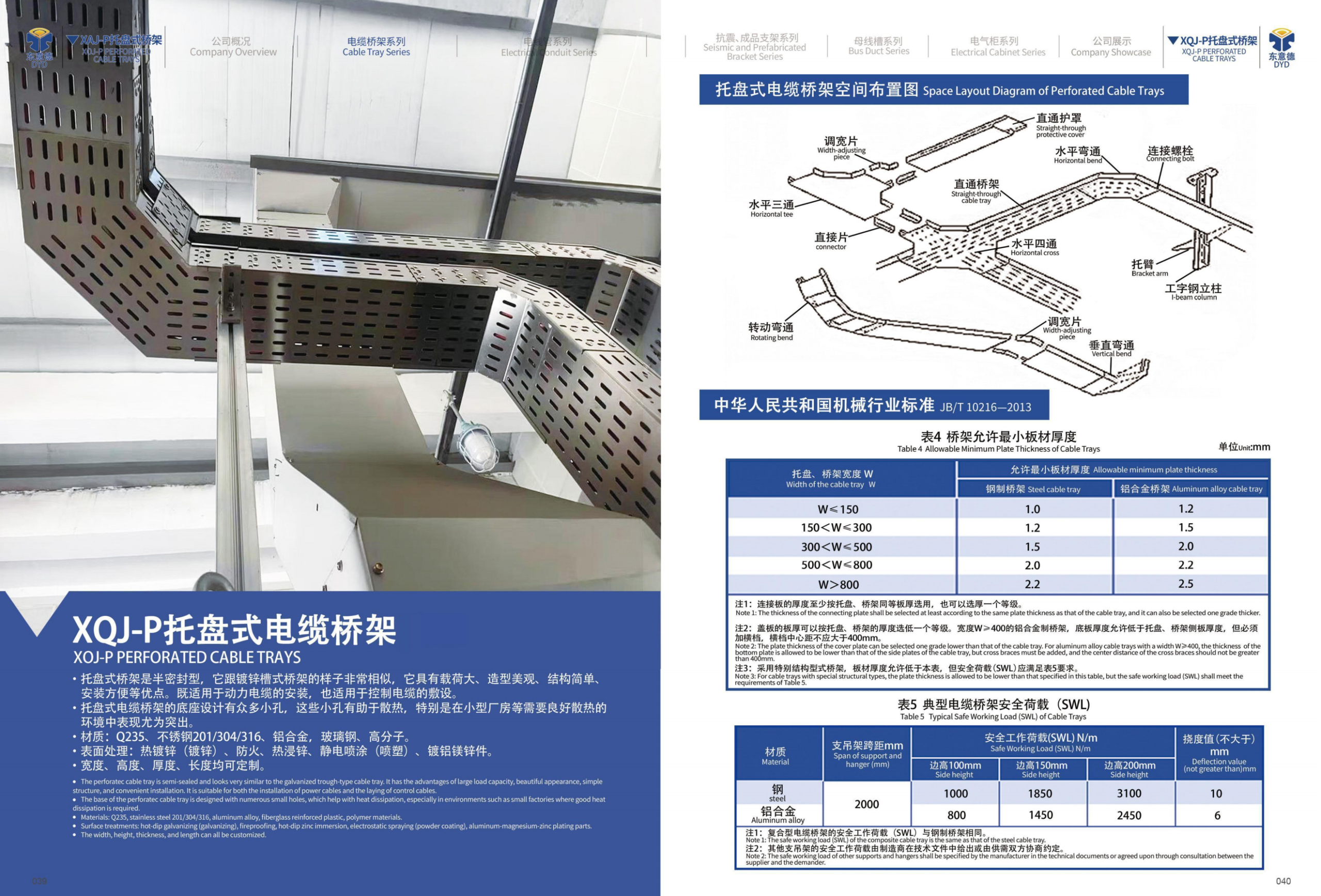

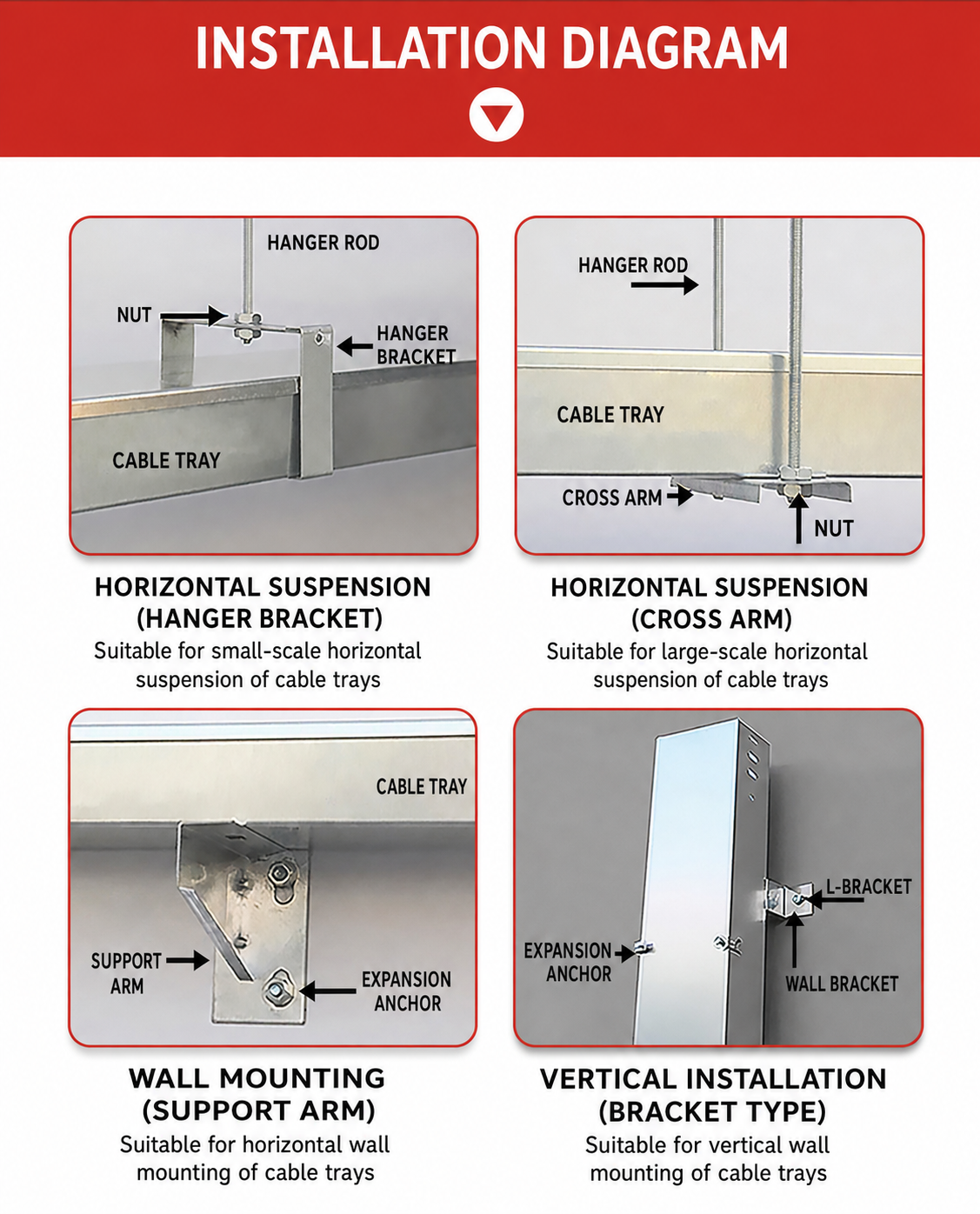

Space Layout Diagram
Click the drawing to enlarge and view details.
Construction Drawings & Parameter Sheets
Click each image to enlarge the full parameter drawing.
Overview, Layout and Standard Parameters

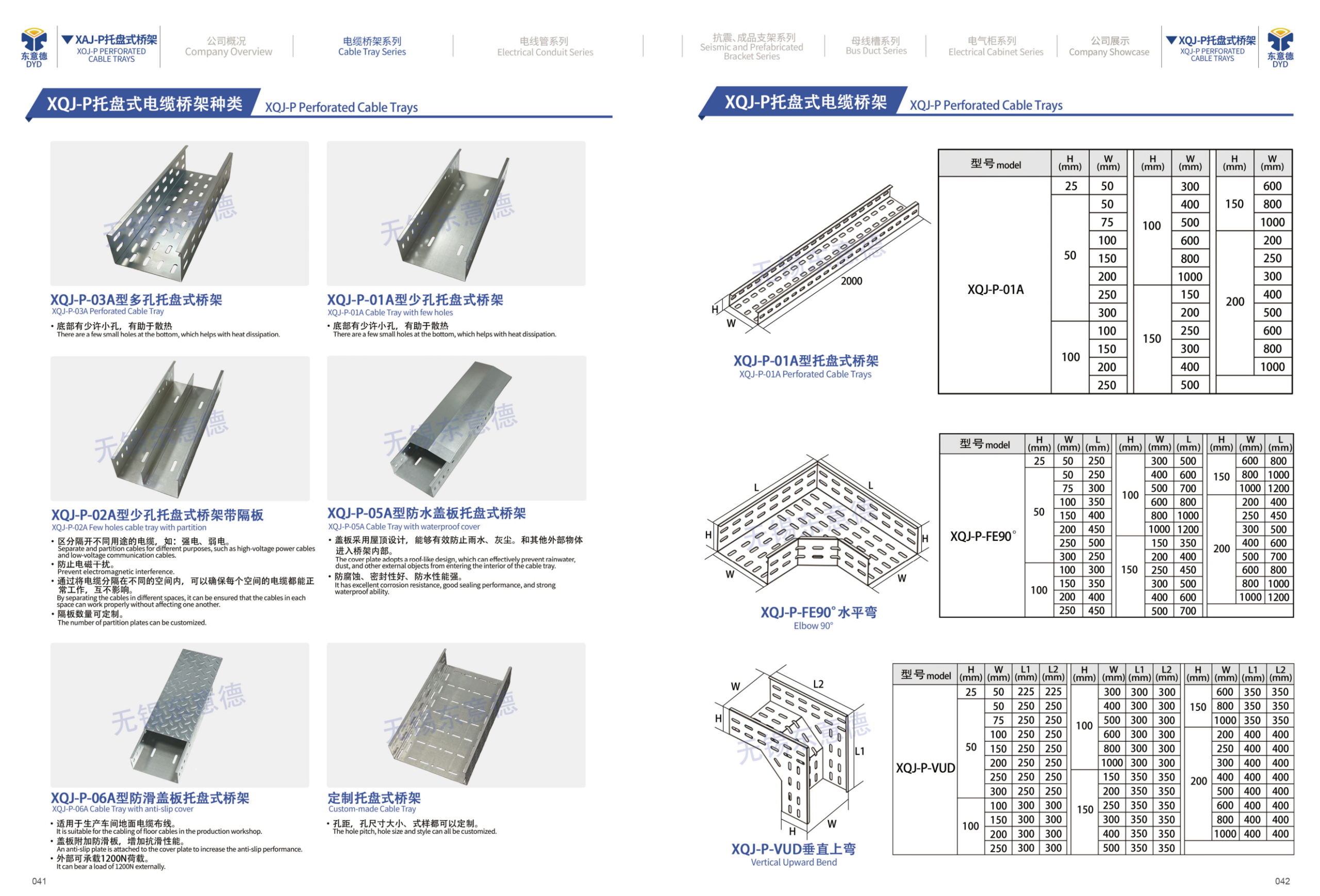

Perforated Cable Tray and Elbow Series

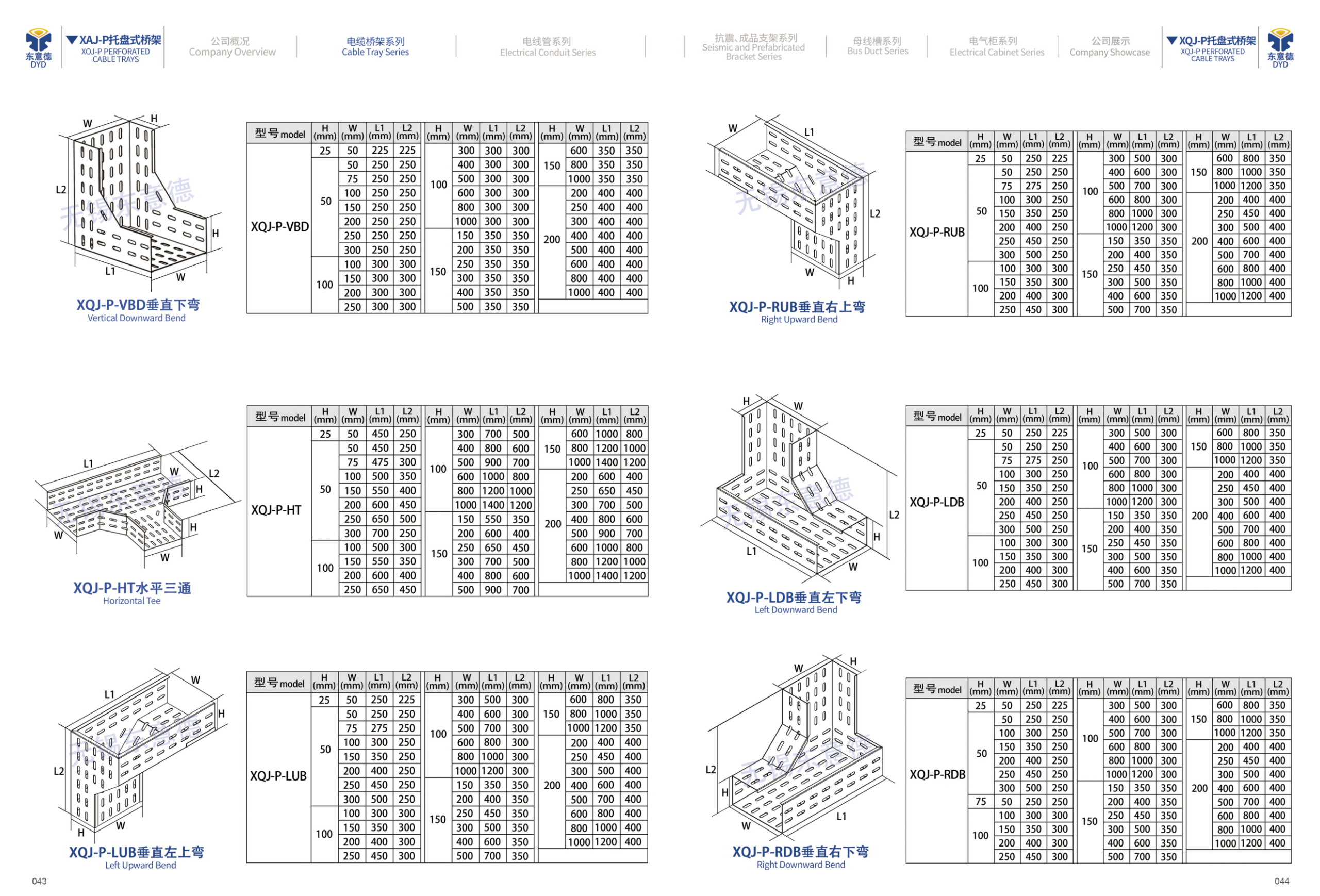

Vertical Bends and Horizontal Tee

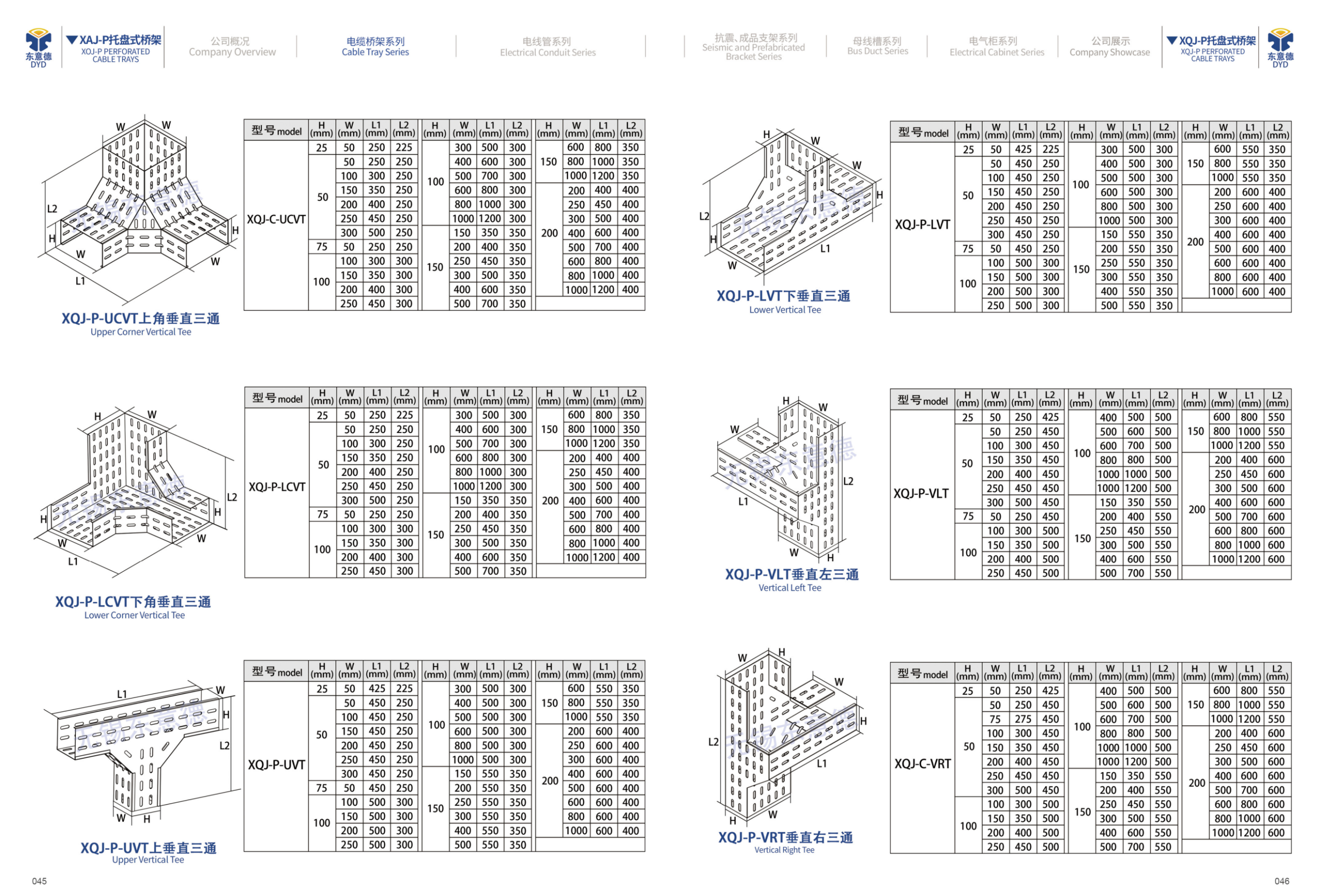

Vertical Tee Series

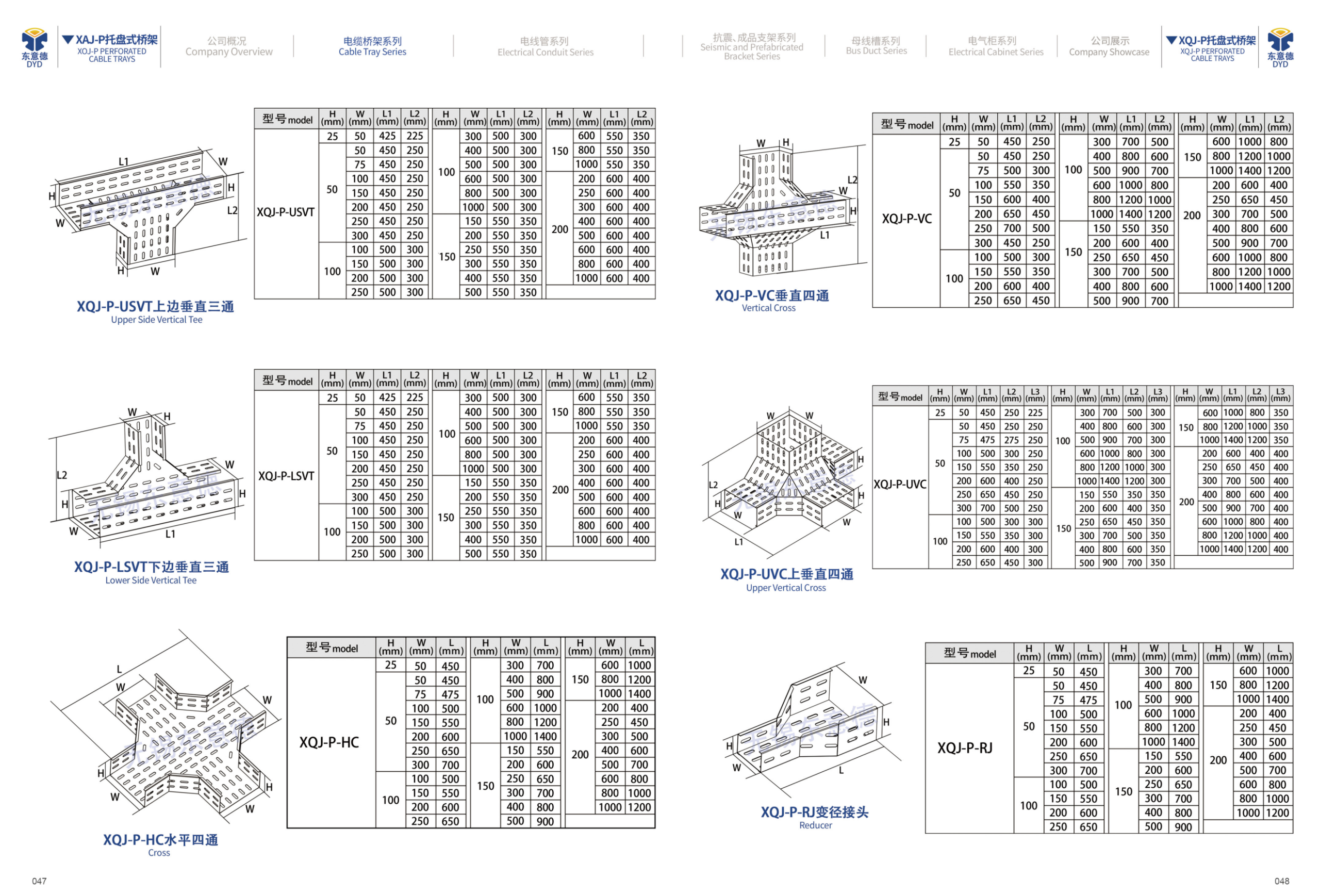

Cross and Special Bends

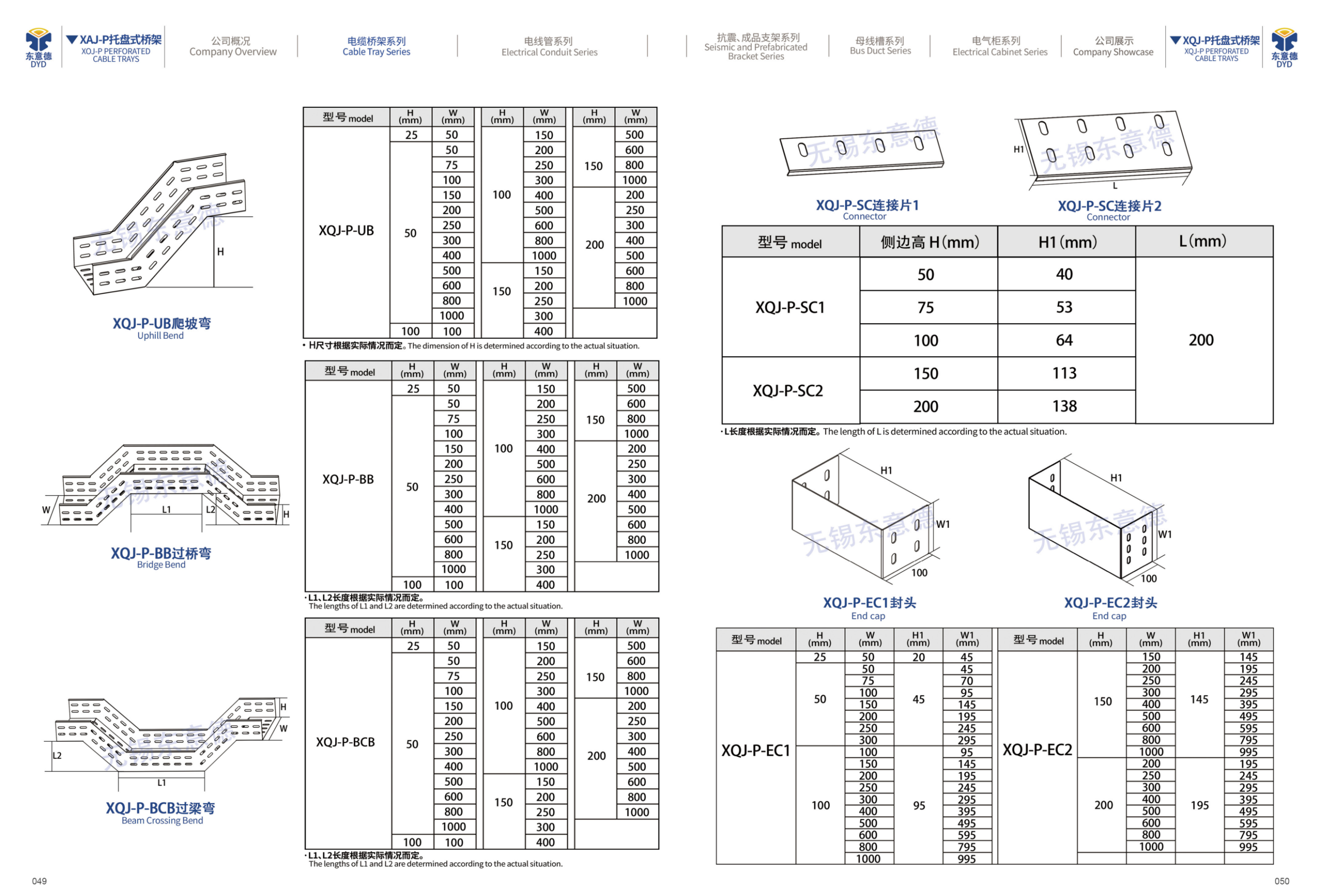

Connectors, End Cap and Accessories

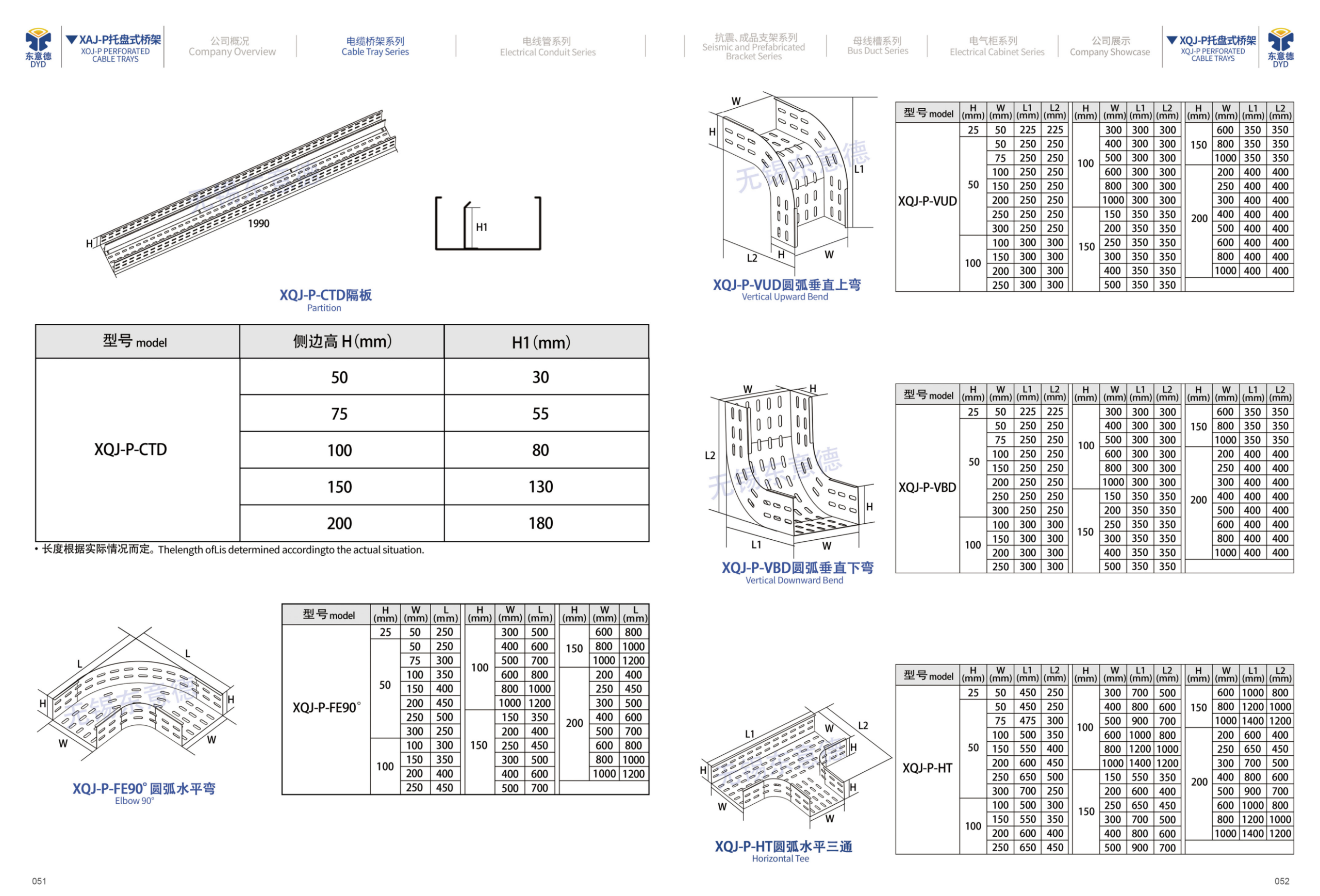

Additional Parameter Drawings
