MATERIALS & SURFACE TREATMENT
Cable Tray Materials and Surface Treatment Parameters
Reference information for cable tray materials, surface treatments, applicable environments, corrosion factors and installation instructions.
TECHNICAL REFERENCE
Materials and Surface Treatment Overview
The following parameter sheets provide reference information for selecting suitable cable tray materials and surface treatments according to different installation environments.
| Parameter Category | Materials and Surface Treatment for Cable Tray Systems |
|---|---|
| Main Materials | Galvanized steel, hot-dip galvanized steel, stainless steel, aluminum alloy, zinc-aluminum-magnesium, FRP, polymer materials, PVC, ABS and other materials |
| Surface Treatments | Galvanizing, hot-dip galvanizing, powder coating, stainless steel finish, zinc-aluminum-magnesium coating and other project-based treatments |
| Applicable Environments | Dry indoor environment, weak corrosion environment, medium corrosion environment, severe corrosion environment and data center clean environments |
| Reference Content | Material selection guide, surface treatment guide, corrosive environment classification, corrosion factors and installation instructions |
| Application | Used for cable tray material selection, project specification confirmation and installation environment assessment |
PARAMETER OVERVIEW
Material and Surface Treatment Table
Click the image to enlarge and view the full parameter sheet.
PARAMETER DRAWINGS
Material Reference Sheets
Click each image to enlarge the full technical parameter drawing.

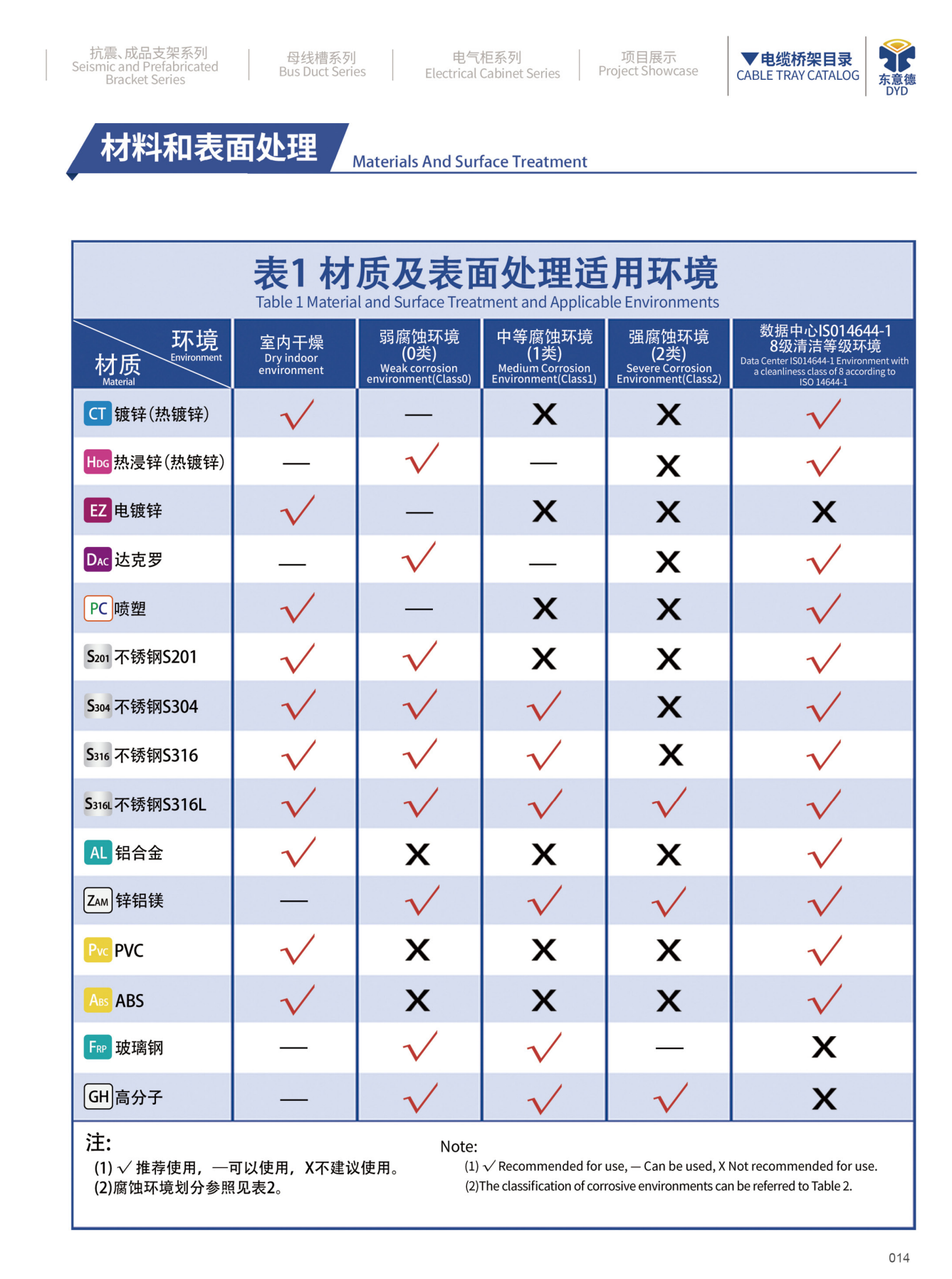

Page 01
Material and Surface Treatment Applicable Environments

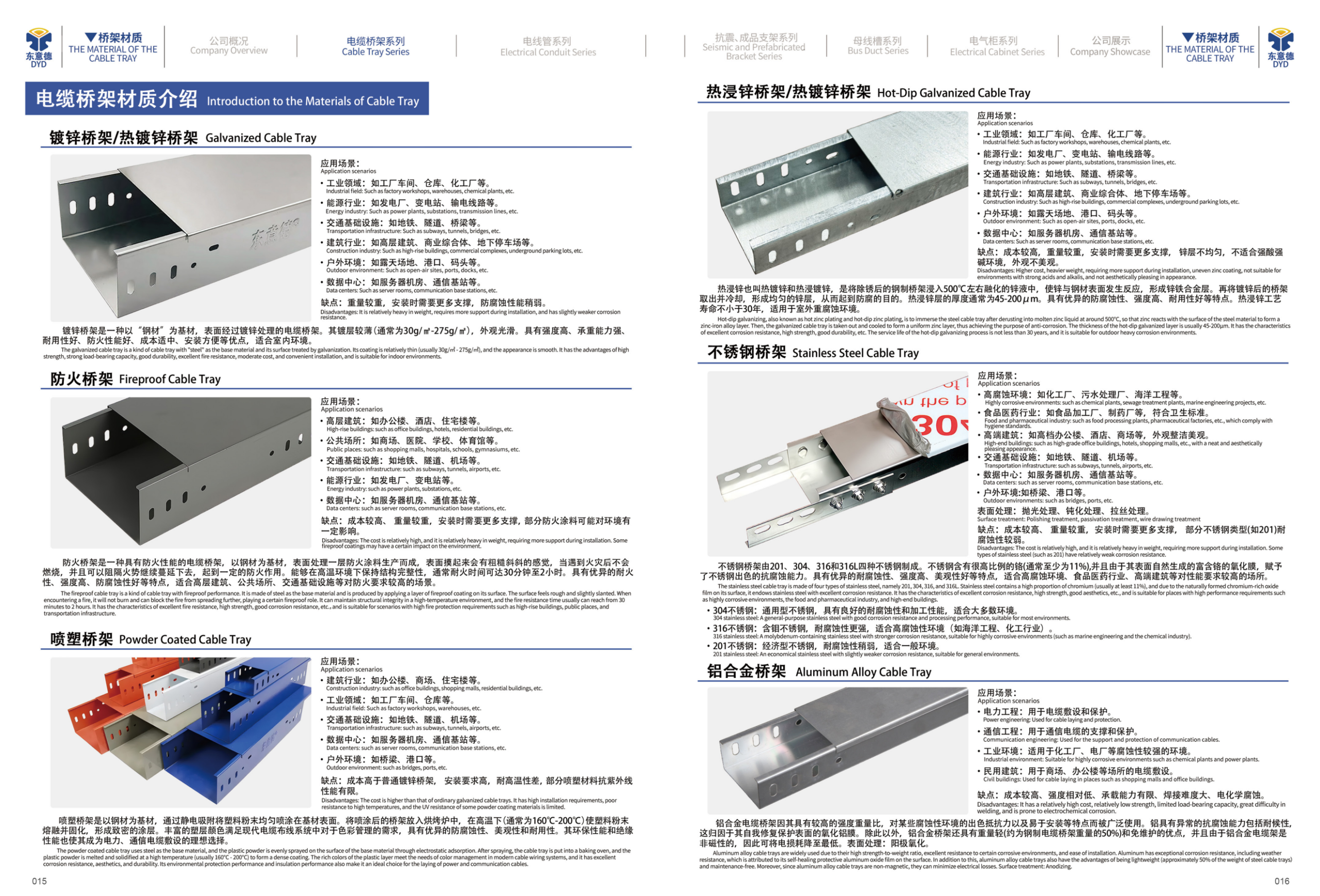

Page 02
Introduction to the Materials of Cable Tray

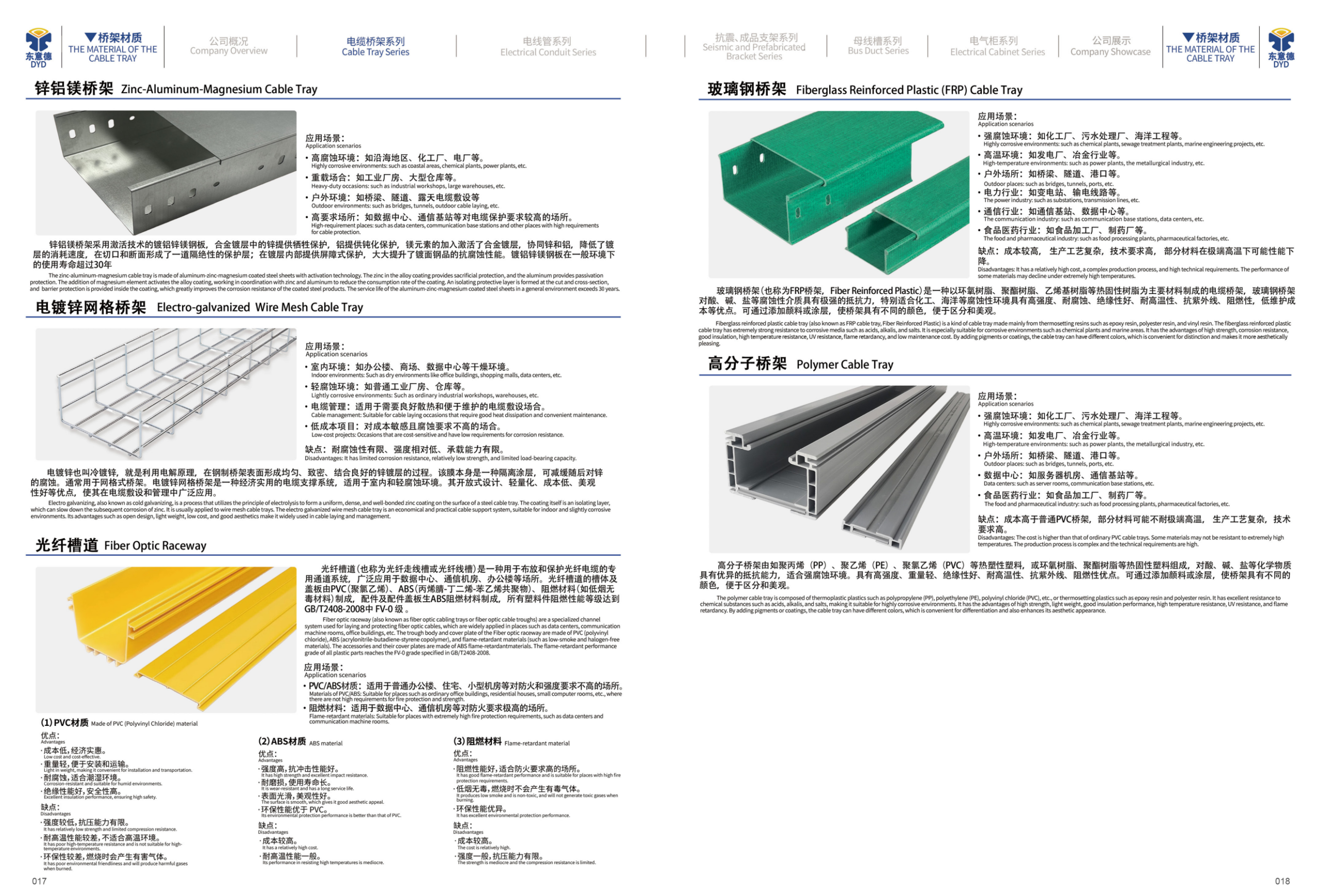

Page 03
Zinc-Aluminum-Magnesium, FRP and Polymer Material Reference

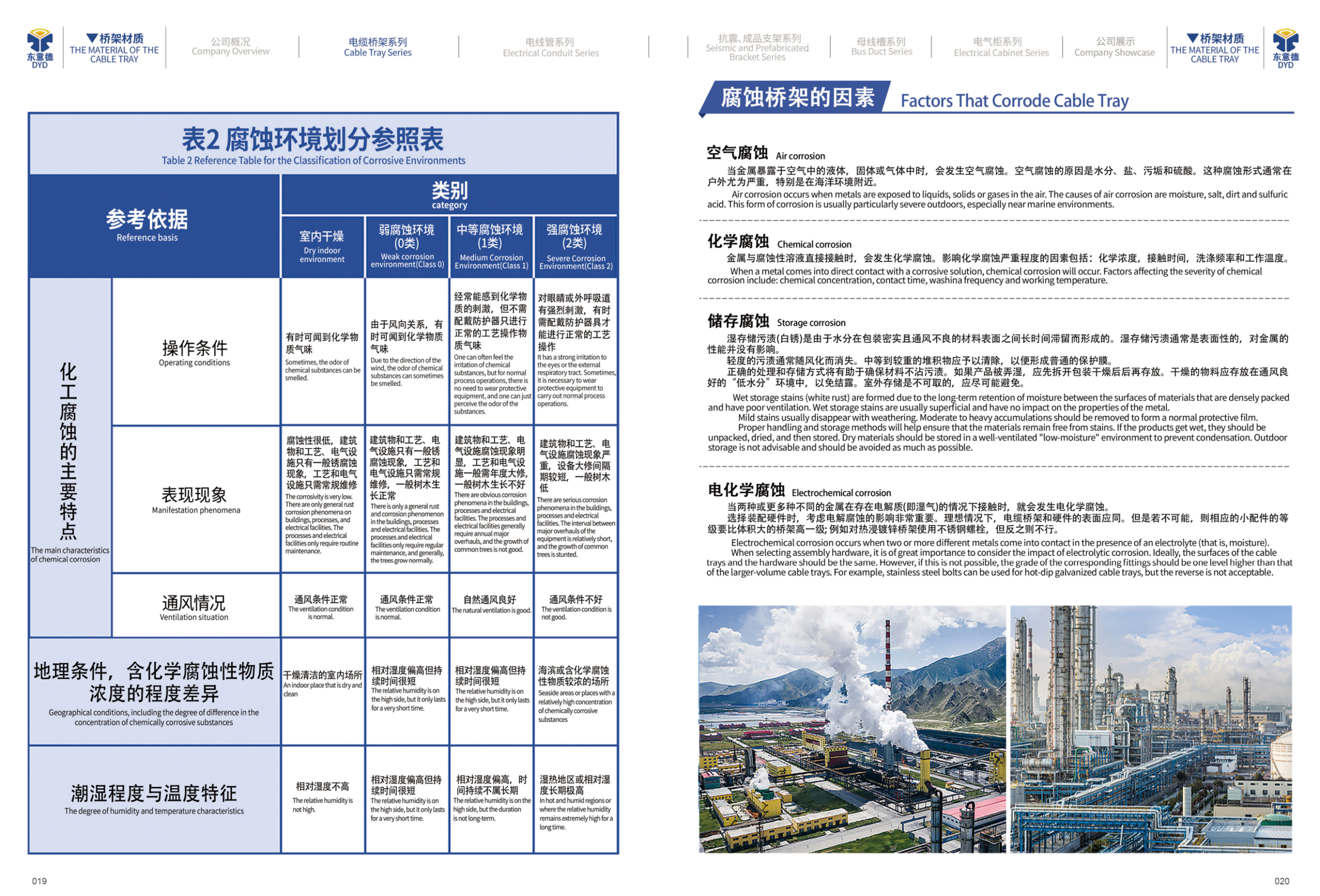

Page 04
Classification of Corrosive Environments and Corrosion Factors

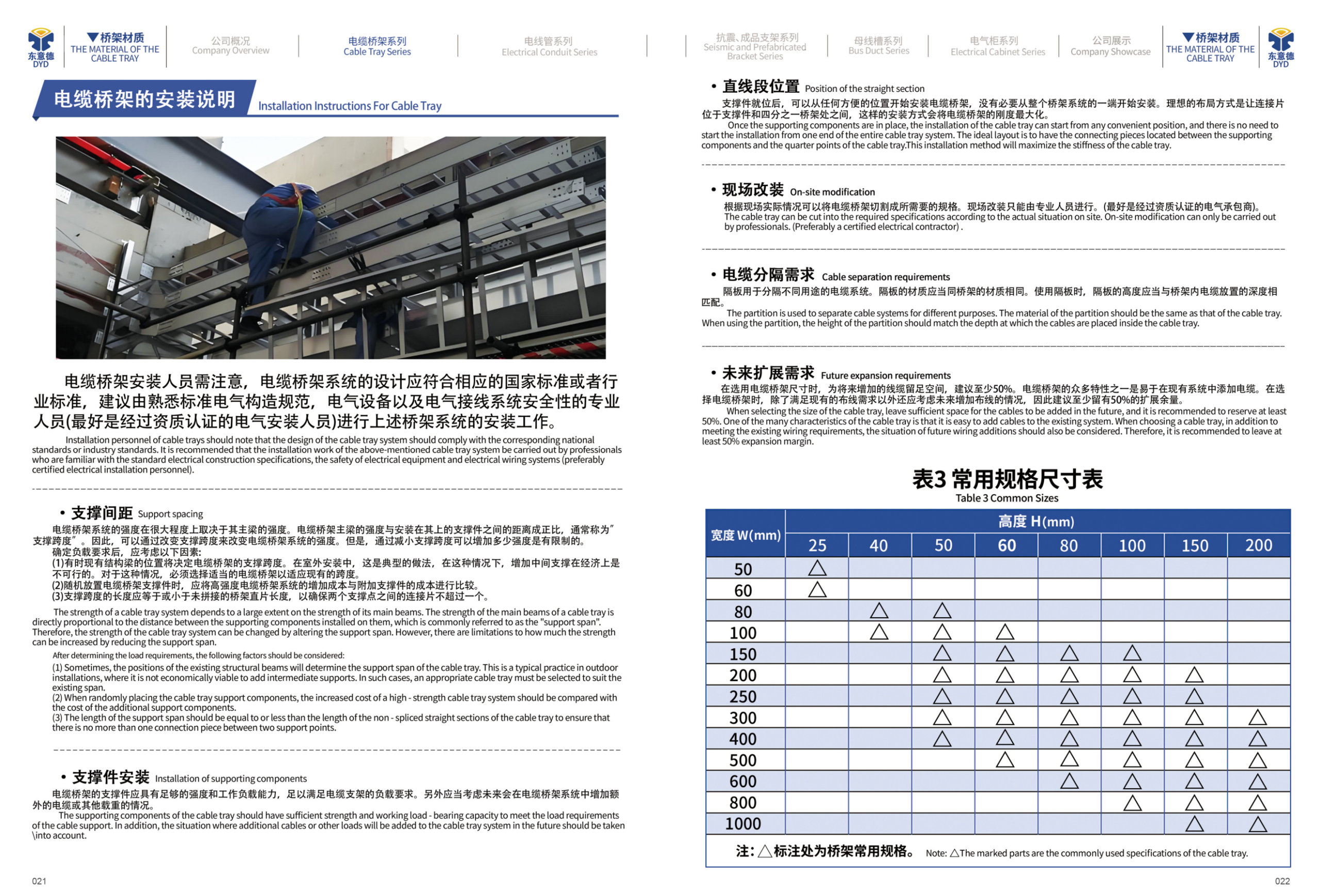

Page 05
Installation Instructions and Common Size Reference
